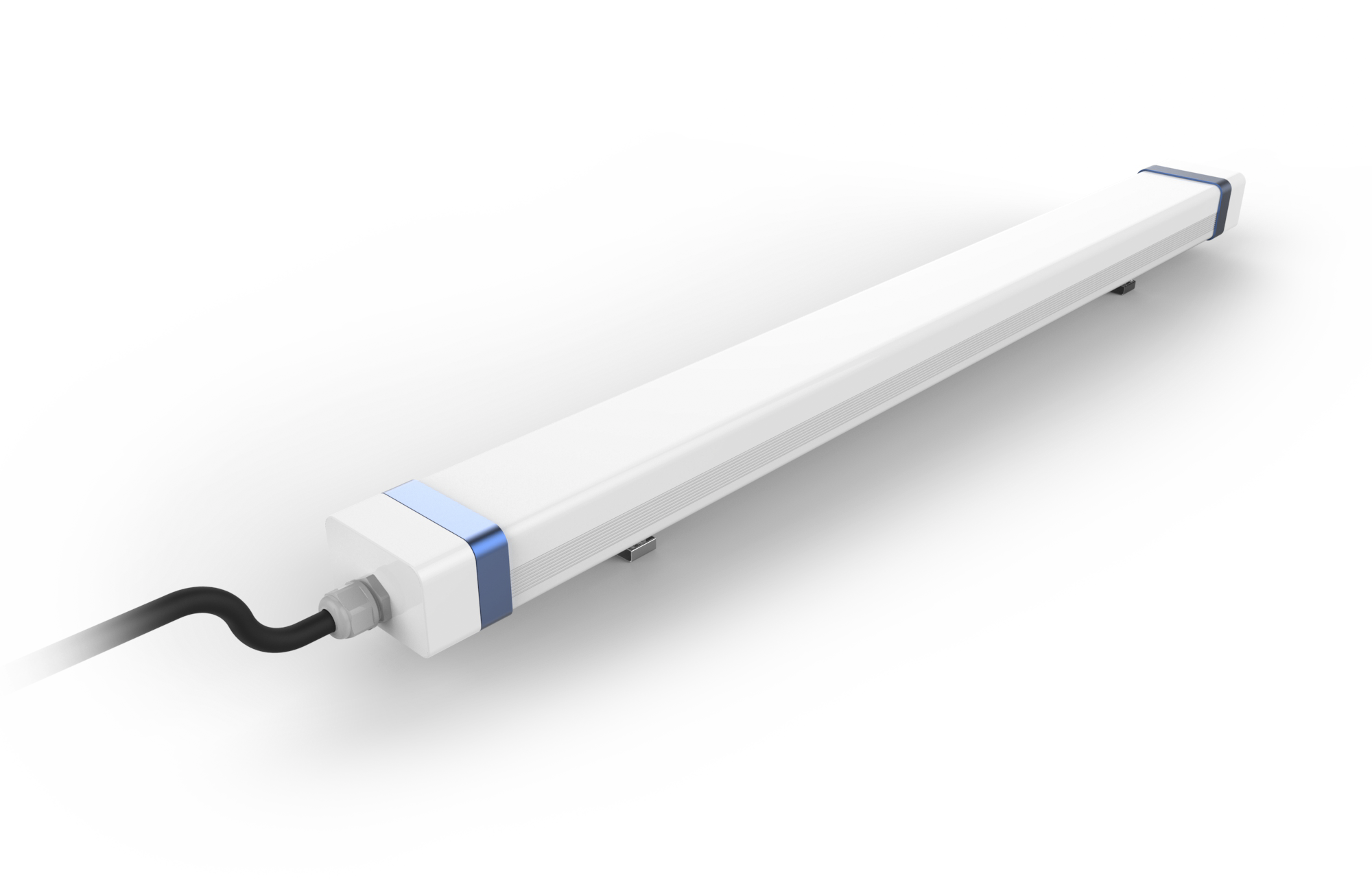

Titan Tri-Proof

Light Source 2835
CCT 4000K
CRI Range 80/90/95
AC Input 100-240V
Light Efficiency 140Lm/W
Power Efficiency >0.87
Beam Angle 120°
Ratings IP66 waterproof & IK10 impact resistant
Recommended Installation Height 2-8M

Thanks to its impressive IK10 impact resistance and IP66 waterproof ratings, this robust luminaire is perfect for a wide range of industrial and commercial applications. Highly resistant to liquid, vapour, dust, corrosion and pressure, this LED is more than suitable for use in exposed exterior locations as well as harsh and demanding operating environments. This is an ideal lighting solution for small to medium sized areas, with a recommended installation height of between 2-8 meters. Our suggested placements include factories, warehouses, bus and train stations, airports & supermarkets.

Optional functions

  • Dimmable
  • Emergency
  • Motion Sensor

Specifications

Model Power (W) Lumens Lm/W
Titan 2FT 20 2800 140
Titan 4FT 40 5600 140
Titan 5FT 50 7000 140
Titan 5FT - A 65 9100 140

Dimensions

Model Length (mm) Height (mm) Depth (mm)
Titan 2FT 600 83 63
Titan 4FT 1200 83 63
Titan 5FT 1500 83 63
Titan 5FT - A 1500 83 63
